Flat View

Flat View is a mode you can turn on in a Lister that enables you to view all the contents of a folder's sub-folders at once. In effect it collapses, or flattens, the display of a nested hierarchy of folders and files into a single folder.

You can turn Flat View on using the FlatViewButton.png button on the default toolbar - this enables Grouped mode. The Folder menu has a Flat View sub-menu that gives you access to the other modes. You can also configure Lister Styles that automatically switch Flat View on when you switch to them.



The three different types of Flat View mode are:



The following screenshots illustrate the differences between the modes.

Flat 1.png

In the starting folder, with Flat View off, all we can see is that there are three sub-folders. We have no idea what the contents of those folders might be.

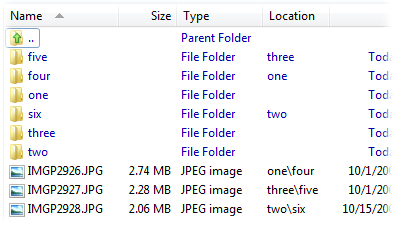

Flat 2.png

Turning on Flat View - Mixed causes Opus to read the contents of all sub-folders (recursively) and add them to the list. Instantly we can see that below the top-level, there are three additional sub-folders, and that somewhere in the hierarchy there are also three image files. The Location column, which is displayed in Flat View mode by the default settings in the Folder Formats system, displays the location of each item, relative to the base folder.

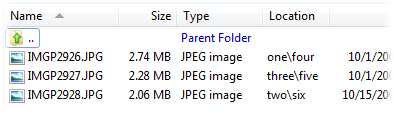

Flat 3.png

Flat View - Mixed (No Folders) removes all folders from the display, leaving only the files behind. This can be very useful if you want to quickly see what files are contained in a directory structure but don't care so much about the which folders the files are in (although the Location column does still display this information).



Flat 4.png

Finally, Flat View - Grouped mode displays a representation of the actual directory structure. The indenting makes the relative location of items immediately obvious - you can see instantly that the IMGP2927.JPG file is in the folder five, which is itself inside the folder one.



For the most part you don't have to treat a Lister that's in Flat View mode any differently to any other - you can double-click, drag-and-drop, view, copy, and delete files in the same way you normally do. You can use drag-and-drop to move or copy files into nested sub-folders - you can even move files from one sub-folder to another in this way. One thing to keep in mind is that if you drop a file into the fle display - but not onto a sub-folder - then the base folder will be used as the target. Normally when you drag a file you can't drop it in the source folder - as this would be a no-op - but in Flat View you can do this, and one effect of this is that it can be easy to accidentally move a file from a nested sub-folder to the base folder without necessarily meaning to. You can always undo such operations, but it's worth remembering this is a possibility.



The only real difference in file operations in Flat View mode comes when you copy files from within sub-folders (via drag-and-drop, copy-and-paste or using the Copy Files command). For example, say you select the three image files in the above screenshot, and drag them to another Lister. Opus will display a dialog asking how you want to perform the copy:

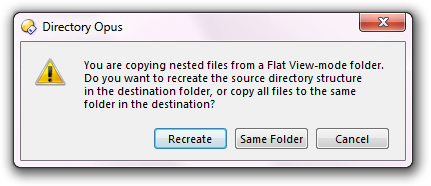

Flat Copy.png

If you choose the Recreate option, Opus will recreate the source folder structure (relative to the base folder) in the destination. In the above example, this means in the destination it would create a folder called one, a sub-folder inside that called four, and then copy the IMGP2926.JPG file into it. The Same Folder option discards the source folder structure - all files would be copied directly into the target folder. One complication that can arise with this is if you have selected files with the same name from multiple sub-folders. In the source directory structure this would be no problem, as they would all be in separate folders, but if you try to copy them all to the same target folder the names would clash. In this case Opus will prompt you to rename or skip over the clashing files.
